Terminals designed for the maritime operations of tomorrow

Viasat, in collaboration with Cobham, is delivering the next generation of maritime antennas to support real-time communication needs. Our industry-first, electronically switchable, multi-band terminals are designed to operate across commercial and government networks today and constellations of the future. Whether sending emails or streaming data-intensive media, Viasat’s maritime SATCOM terminals enable seamless connectivity for everyone on board.

Helicopter and ship performing a search and rescue mission with a maritime terminal visible in the bow
Helicopter and ship performing a search and rescue mission with a maritime terminal visible in the bow

Terminals designed for the maritime operations of tomorrow

Viasat, in collaboration with Cobham, is delivering the next generation of maritime antennas to support real-time communication needs. Our industry-first, electronically switchable, multi-band terminals are designed to operate across commercial and government networks today and constellations of the future. Whether sending emails or streaming data-intensive media, Viasat’s maritime SATCOM terminals enable seamless connectivity for everyone on board.

Maritime broadband solutions

Viasat terminals– One SATCOM system for every mission & application

Whether sailors are communicating with family back home or relaying tactical information within the fleet, Viasat’s maritime terminals and high-capacity satellite service delivers exceptional connectivity at sea.  With Viasat, ships no longer need two separate networks for mission-critical communications and personal/MWR communications. Now ships can leverage the same high-capacity network for both applications through the ability to partition and secure the transfer of data.

Aerial view of a military ship out at sea
Aerial view of a military ship out at sea

Viasat terminals– One SATCOM system for every mission & application

Whether sailors are communicating with family back home or relaying tactical information within the fleet, Viasat’s maritime terminals and high-capacity satellite service delivers exceptional connectivity at sea.  With Viasat, ships no longer need two separate networks for mission-critical communications and personal/MWR communications. Now ships can leverage the same high-capacity network for both applications through the ability to partition and secure the transfer of data.

Maritime SATCOM terminals

Viasat has a range of maritime terminals available for vessels small to large, including the new Global Maritime Terminal-6524 (GMT-6524) and Global Maritime Terminal-6514 (GMT-6514) -  Ku/Ka multi-band terminals with electronic band select that can operate in both single or dual antenna configurations.



Terminal

Antenna type

Effective size

Terminal weight

Terminal power

Description

GMT-6524

Ku/Ka, 3-axis stabilized tracking antenna with integrated GNSS

1m

Antenna: 350 lb.;    159 kg

Below Deck Equipment: 21.6 - 26.6 lb (9.8 - 12.1 kg)

200 W typical, 410 W peak

1m Ku/Ka multi-band terminal with electronic band select to enable roaming across Viasat & other commercial & government networks

GMT-6514 Ku/Ka, 3-axis stabilized tracking antenna with integrated GNSS 72 cm  Antenna: 135 lb.; 61.2 kg

200 W typical, 410 W peak  72cm Ku/Ka multi-band terminal with electronic band select to enable roaming across Viasat & other commercial & government networks

Sailor 900

Ka, 3-axis stabilized tracking antenna with integrated GNSS

1m

Antenna: 291 lb.; 132.8 kg

200 W typical, 410 W peak

An advanced 3-axis stabilized Ka-band 1m antenna system and user terminal

Sailor 600

Ka, 3-axis stabilized tracking antenna with integrated GNSS

60 cm

Antenna: 97.1 lb.; 43.8 kg

135W typical, 240W peak

An advanced 3-axis stabilize Ka-band 60 cm antenna system and user terminal

One network with game-changing capabilities

When Viasat terminals are paired with our Hybrid Adaptive Network (HAN), ships of any size can remain securely connected around the globe. Our industry-leading data rates support multiple simultaneous ship sensors and amplify maritime missions & applications, including:

  • Search and Rescue (SAR)
  • Autonomous or Unmanned Surface Vessels
  • Maritime interdiction
  • C4ISR
  • Morale, Welfare & Recreation (MWR)
Military fleet of 4 traveling in the ocean at dusk utilizing maritime satellite services

Service that extends connectivity from shore to sea

Whether operating over a sovereign network or over Viasat's network for regional or global operations, sailors at sea are prepared with fast, reliable, and secure maritime satellite services for any operation with the world's highest capacity network. Pairing a Viasat terminal with our high-capacity satellites, sailors and ships can stay connected in congested and contested waters.

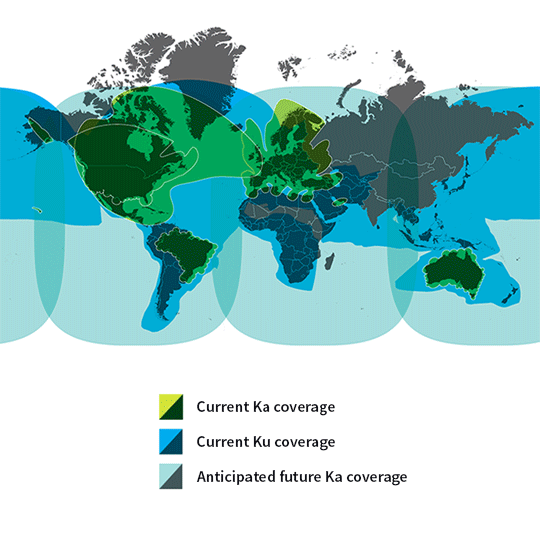

Current Viasat Ku and Ka SATCOM coverage map with anticipated future Ka coverage
Current Viasat Ku and Ka SATCOM coverage map with anticipated future Ka coverage

Service that extends connectivity from shore to sea

Whether operating over a sovereign network or over Viasat's network for regional or global operations, sailors at sea are prepared with fast, reliable, and secure maritime satellite services for any operation with the world's highest capacity network. Pairing a Viasat terminal with our high-capacity satellites, sailors and ships can stay connected in congested and contested waters.

Government maritime resources

Talk to us

Looking for more information on our government maritime terminals and services? Talk to us about your needs.
