KG-255XJ Multi-Channel Ground Operating Equipment (GOE)

Flexible, next-generation Satellite Operations Center data protection

Prepare your Mission for the Next Crypto Evolution.

Learn more

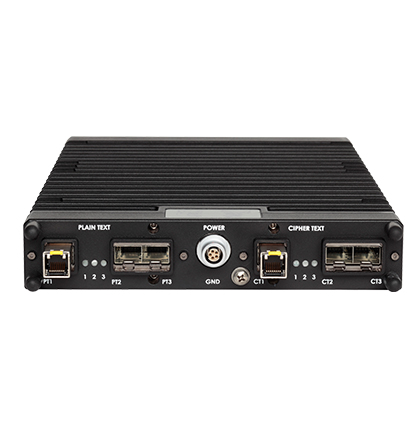

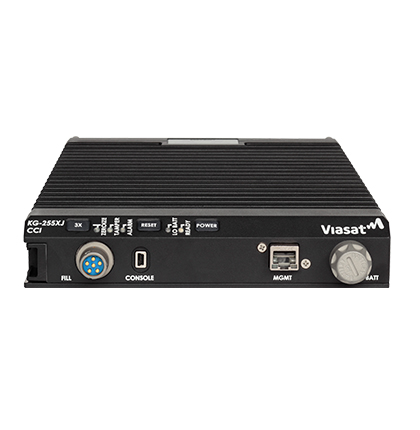

Top view of a black KG-255XJ with a white Viasat logo featuring status lights, power and reset buttons, data ports and a battery compartment

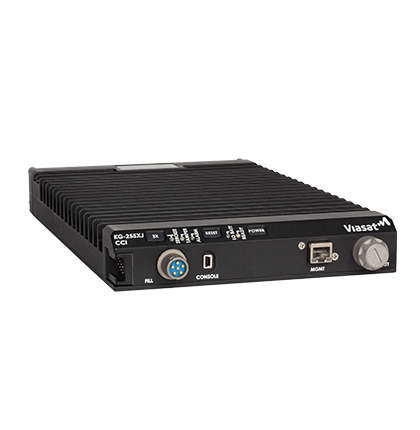

Top right-angled view of the KG-255XJ

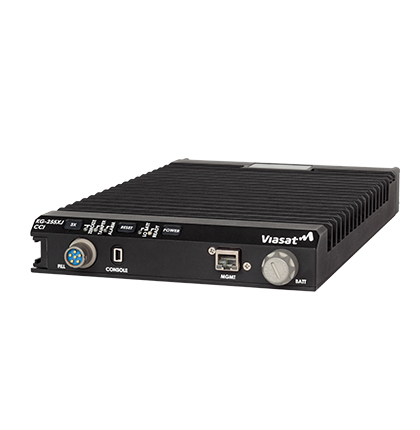

Top left-angled view of the KG-255XJ

The KS-255XJ is the NSA-certified Type 1, next-generation End Cryptographic Unit (ECU) for securing Telemetry, Tracking, and Commanding (TT&C) and mission data in Satellite Operation Centers (SOCs). It can protect Top Secret/Sensitive Compartmented Information (TS/SCI) and below data, help reduce integration costs, and seamlessly integrate into networks.

Download resources

The flexible KG-255XJ is configurable for multiple cryptographic functions using industry standard Ethernet interfaces for both data and control.



Building upon the applications of the KS-252 with lower size, weight, and power (SWaP), the Viasat KG-255XJ has higher traffic data throughput while supporting existing algorithms, formats, and features like TT&C, Command Spacing Stamp (CSS), Cypher Text (CT) Inversion, and traffic statistics.



Leveraging Gigabit Ethernet interfaces, this high-availability security appliance delivers modern networking standards for your SOC. The KG-255XJ has the ability to host a wide range of networking applications within its high-assurance boundaries, such as system logging protocol (SYSLOG), Network Time Protocol (NTP), and Lightweight Directory Access Protocol (LDAP).

Additionally, the Viasat KG-255XJ is software reprogrammable, allowing you to conveniently upgrade or modify its functionality for future applications including updated algorithms, key specifications, additional network support, cybersecurity support, and Transmission Security (TRANSEC).

Crypto-modernization centric

  • Six independent channels
    • Each channel is configurable:
      • Algorithm and mode
      • Key
      • Direction (encryption or decryption)
      • Source/Destination address
  • Encryption and decryption channels each have aggregate throughput of 900 Mbps (1800 Mbps total)
  • Human-machine interface (HMI) and Representational State Transfer (REST) man-machine interface (MMI) control interfaces
  • Software upgradable
    • Programmable encryption
    • Adapt to evolving security requirements
    • Upgrade to the latest commercial standards

Light weight, compact size

  • Less than 9 lbs
  • Two KG-255XJs fit side-by-side in a standard 19 in. x 1U rack

*Throughput speeds are shown for UDP with 1 channel.



KG-255XJ (US SW)

KG-255XJ (CNSA SW)

Suite

A/CNSA

CNSA

Traffic channels

6

6

Algorithms

Mbps*

Mbps*

CAROUSEL

60



CARDHOLDER

60



BELSHAZZAR (PEGASUS)

180



INSCOE (KG-29)

60



INY (KI-23)

20



GOODSPEED (KG-28)

80



AES-256 (ECB, CTR, GCM, CFB) (Gryphon and ACE compatible)

900 (ECB, CTR, GCM)

700 (CFB)

900 (ECB, CTR, GCM)

700 (CFB)

Bypass


600


600

Support equipment

  • 1U rack mount holds two Viasat KG-255XJs
  • High-density, high-availability rack mount holds up to two KG-255XJs

Management

  • Web-based management or application programming interfaces (APIs) available
