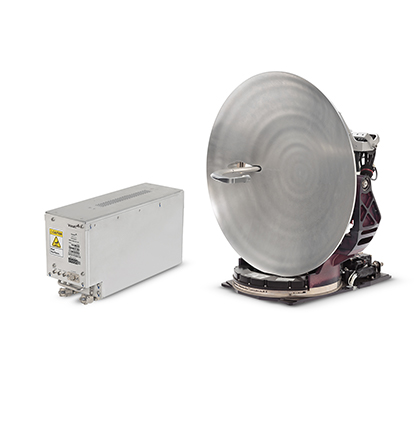

Front right angled view of the GAT-5518 Terminal - antenna and modem

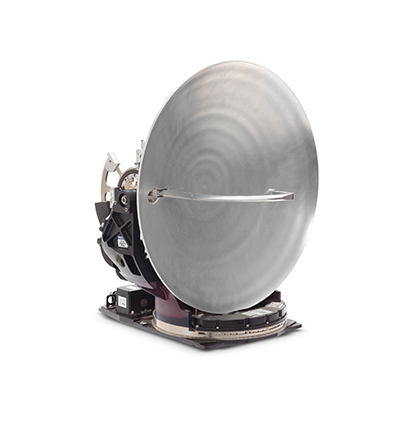

Right angled view of the GAT-5510 antenna

Left angled view of the GAT-5510 antenna

Global Aero Terminal - 5518 (GAT-5518)

High-speed broadband for airborne operations

Viasat’s resilient Ka-band GAT-5518 terminal has an 18 in. (45.7 cm) parabolic antenna capable of operating on full ITU Ka-band spectrum with all polarizations. This mission-ready terminal is a part of Viasat’s family of next-generation, full-ITU Ka-band terminals, enabling in-flight, broadband connectivity services for airborne operations around the globe.

Viasat GAT-5518 at-a-glance

Future-proof your aircraft with one of Viasat’s Ka-band terminals to enable interoperability across all Viasat Ka-band satellites, including ViaSat-3, a planned global constellation of 1 Tbps Ka-band satellites.

Features include:

3 LRUs; an 18 in. (45.7 cm) antenna with an integrated RF and ACU, our next-generation modem, and an antenna power supply unit
Tail or fuselage mounted antenna
Operates over the highest capacity Ka-band satellites
Integrates into the existing aircraft’s cabin network
A low SWaP solution perfect for fixed wing and UAS aircraft
Send and receive large amounts of data with a small footprint

MC-12 Aircraft flying against a light blue sky

Optimize the capabilities of your GAT-5518 with Viasat SATCOM service

Our Best Available Network (BAN) enables roaming between networks of your choice vs. being saddled to a single provider. With a Viasat GAT-5518 terminal and our high-capacity satellites, warfighters can stay connected and informed around the globe for the entire duration of their mission.

Learn how pairing a Viasat GAT-5518 with Viasat service can amplify your connectivity and enhance your CONOPS.

EXPLORE SERVICES

View of Earth from space with light beaming from the side

Capabilities
Specifications
Talk to us

Real-time mission-critical data

Enable any aircraft to stay connected with real-time information virtually anywhere you fly. The Viasat Global Aero Terminal 5518 partnered with our global Best Available Network (BAN) provides mission-critical connectivity to global and regional aircraft.

This combination amplifies today’s missions and applications:

Enroute government C3 and VIP transport communications for data, VoIP, VTC, internet access, virtual collaboration, and IPTV
Real-time intelligence, surveillance and reconnaissance (ISR) with HD full motion video and multi-sensor/multi-intelligence operations for instant situational awareness and decision making
Looking for more information on our commercial or business aviation application? Find it here.

Antenna

Class - Tail or fuselage mount, parabolic reflector Ka-band TX/RX airborne antenna
Aperture - Parabolic reflector, circular polarization, electronically switchable, all combinations of R, L, co-pol, or cross-pol
Frequency - Full ITU Ka, commercial and military
Swept volume (DxH) – Ø19.6 x 19.6 in.; Ø49.8 x 49.8 cm.
Weight – 35.0 lb.; 15.9 kg

Antenna power supply

Power source - 115 VAC, 360 Hz – 800 Hz single phase, or 28 VDC
Power consumption - 420 W
Dimensions (LxWxH) - 11 x 8 x 3.3 in.; 28 x 20.8 x 8.3 cm.
Weight - 7.9 lb.; 3.6 kg

Modem

Form factor - ARINC 600 4 MCU
Dimensions (LxWxH) - 14.6 x 4.9 x 7.6 in.; 37 x 12.5 x 19.4 cm.
Weight - 17.0 lb.; 7.7 kg

Want to learn more about the GAT-5518?

Contact Viasat
